 Post subject: Fuel Bowsers (reference)
PostPosted: Fri Aug 15, 2008 11:42 am
Offline
User avatar

Joined: Wed Aug 13, 2008 6:08 pm
Posts: 1041
Location: Northants
As well as using some RAF towed bowsers in the early days, the USAAF brought with them their own purpose-designed fuel tankers.

The main ones seen in the UK were the rigid 750 gallon F-3, fitted to the GMC 2.5ton truck chassis, the 2000 gallon F-2/F-2A semitrailer and the 4000 gallon F-1/F-1A semitrailer.

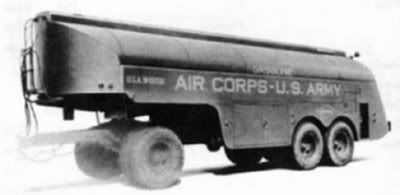

Semi-trailer, Fuel Servicing, 4000 Gal F-1

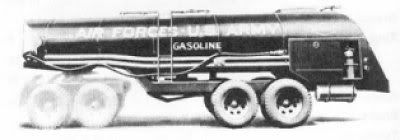

Semi-trailer, Fuel Servicing, 4000 Gal F-1A

Train-Towing F-1As

The trailing F-1A has a Dolly, Trailer Converter, Fuel Servicing, Type F-2 fitted to it's 5th wheel coupling, to allow it to be tandem-towed.

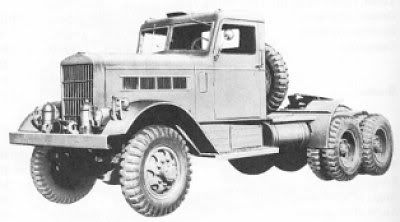

Usually towed by a Truck, Tractor, Fuel Servicing, 7.5 Ton 6x6

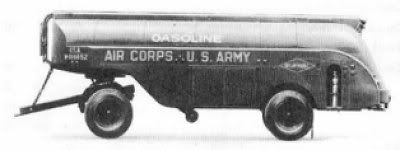

Semi-trailer, Fuel Servicing, 2000 Gal F-2

Semi-trailer, Fuel Servicing, 2000 Gal F-2A

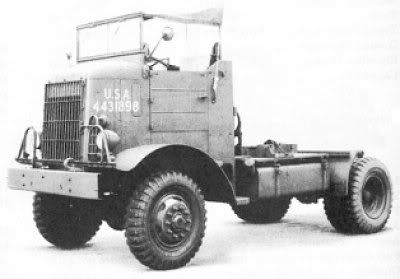

Usually towed by either the above tractors, or the smaller Truck, Tractor, 4-6 Ton 4x4 series

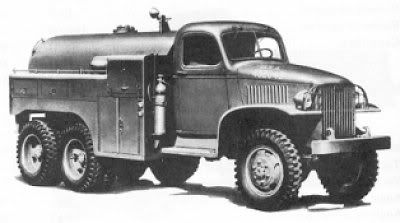

Truck, Fuel or Oil Servicing, 750 Gal, 2.5 Ton 6x6 F-3

There was also the visually almost identical Truck, Oil Servicing, 660 Gal, 2.5 Ton 6x5 L-2.

In addition, there were the following towed trailers, which may or may not have all been used in the UK.

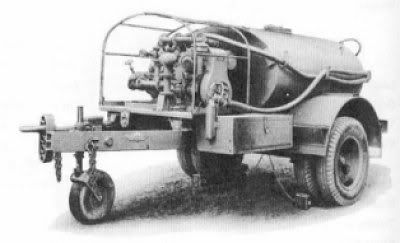

Trailer, Fuel Servicing, 600 Gal A-1

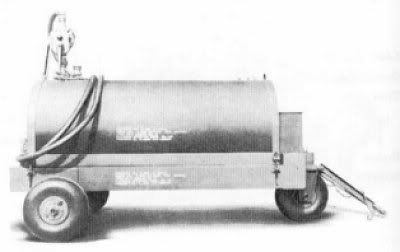

Trailer, Fuel Servicing, 220 Gal A-2A

Trailer, Fuel Servicing, 600 gal A-3

Paul
